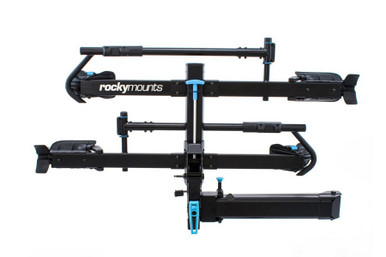

RockyMounts 10002 BackStage Bike Rack

The RockyMounts BackStage is a 2-bike swing-away platform hitch rack that swings a full 180 degrees, providing unmatched rear-of-vehicle cargo access, even with bikes loaded. Plus, it easily tilts up when no bikes are installed, for compact stowage behind your vehicle.

Features:

• 180° swing-away design for full access to the rear of your vehicle.
• Rack folds up flat against the vehicle when no bikes attached.
• Tilts down 30° for easy hatch access even with bikes loaded on.
• Tilt mechanism always within easy reach.
• No frame contact secures bicycles by the front wheel.
• Wheel trays slide side-to-side to reduce bike contact issues.
• Premium 3-axis anti-wobble hitch attachment keeps rack solid on your vehicle.
• Included locking hitch bolt secures the rack to the hitch.
• Included cable lock, keyed alike to the hitch lock, secures your bikes to the rack.

 Specifications:

• Bike capacity: 2
• Weight capacity per bike: 27 kg (60 lbs)
• Total load capacity: 54 kg (120 lbs)
• Wheel size range: 20 - 29 in
• Wheelbase range: 915 - 1270 mm (36 - 50 in)
• Maximum tire width: 5 in
• Folded flat dimensions (L × W × H): 82 × 145 × 43.2 cm (32.25 × 57 × 17 in)
• Folded up dimensions (L × W × H): 48.2 × 145 × 76.2 cm (19 × 57 × 30 in)
• Weight: 26.8 kg (59 lbs)
• Hitch compatibility: 2 in with minimum 350 lb tongue weight.
• Off-road suitability: No
• Bike fender compatible: No
• RV Compatible: No
• 3 bike add-on compatible: No
• Warranty: Limited lifetime
• Colour: Black
• Model: 10002
