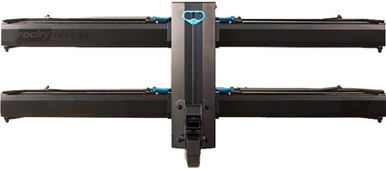

RockyMounts 10250 GuideRail Bike Rack 1.25"

The RockyMounts 10250 GuideRail is a 2-bike platform hitch rack that steps away from traditional rack designs. Using dual load arms that secure bikes by the tires, the GuideRail eliminates frame and fork contact while allowing asymmetric bike loading to reduce handlebar interference.

Features:

• Durable construction with minimal plastic parts for long-term reliability.
• No frame or fork contact design secures bikes by the tires only.
• Dual load arms allow asymmetric bike loading to reduce handlebar interference.
• Rack tilts up flat against the vehicle when not in use.
• Rack tilts down 30 degrees from horizontal for easy hatch access even with bikes loaded.
• Outer wheel tray higher than inner wheel tray for improved road clearance and increased bike-to-bike spacing.
• Tilt lever easily reachable in all rack positions.
• Included 10mm square link chain lock provides best-in-class bike security.
• Ideal for most bikes including many e-bikes.
• Rack secures tightly to hitch thanks to 3-axis anti-wobble hitch system.

Specifications:

• Bike capacity: 2
• Weight capacity per bike: 27 kg (60 lbs)
• Total load capacity: 54 kg (120 lbs)
• 3 bike expandable: No (model 10255 2" hitch version only)
• Wheel size range: 20 - 29 in
• Wheelbase range: 915 - 1397 mm (36 - 55 in)
• Tire width range: 19 mm - 3 in
• Folded flat dimensions (L × W × H): 82 × 145 × 43.2 cm (32.25 × 57 × 17 in)
• Folded up dimensions (L × W × H): 48.2 × 145 × 76.2 cm (19 × 57 × 30 in)
• Weight: 22.3 kg (49 lbs)
• Hitch compatibility: 1.25 in (2 in with Adapter Sleeve, sold separately)
• Off-road compatible: No
• RV compatible: No
• Rear fender compatible: No
• Front fender compatible: Yes
• Warranty: Limited lifetime
• Colour: Black
• Model: 10250
