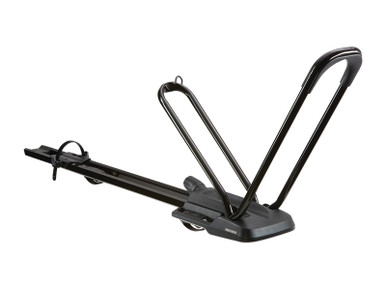

Yakima 8002139 HighRoad Bike Rack

The 8002139 HighRoad is Yakima’s premium roof mounted upright bike rack offering an adjustment free front tire hoop, easy clamping with the TorqueRight tensioning knob and a low profile.

Features:

• Rack folds down compactly when not in use.
• Secures the bike by the wheels making it easy and safe to carry most bike shapes.
• No front wheel removal requirement makes for quick bike installation.
• With no frame contact it is a perfect way to transport full suspension bikes and carbon fibre frame bikes.
• Wheel hoop fits 26” to 29” wheels and tires from 23mm to 3.25” with no adjustment needed.
• Fits long bikes up to 132.1 cm (52 in).
• Integrated TorqueRight™ knob secures the front bike with ease.
• Rear wheel easily secured with ratcheting strap.
• Tool-free universal mounting hardware makes for easy attachment to almost any roof cross bars.
• Can easily fit T-Slot crossbars with addition of the 8002122 SmarT-Slot Kit 1 (sold separately).
• Add one SKS lock core to the included TailWhip security cable and or rear bar mounting hardware for additional security when your vehicle is parked.
• Built in lock loop allows you to use your own cable lock for even greater security when parked.

Specifications:

• Fits wheel size: 26” to 29”
• Fits tire width: 23mm to 4”
• Max wheelbase: 132.5 cm (52.25 in)
• Load limit: 20 kg (45 lbs)
• Off-road load limit: 12.3 kg (27 lbs)
• Weight: 8.2 kg (18 lbs)
• Dimensions (LxWxH): 146 x 24.1 x 11.4 cm (56 x 4.5 x 9.5 in)
• Crossbar spread (Min/Max): 46 – 101.5 cm (18 – 40 in)

Instruction Manual
