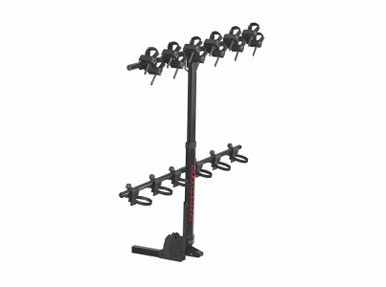

Yakima 8002743 HangTight 6 Bike Rack

The Yakima 8002743 HangTight 6 Vertical Hanging Bike Rack secures your bikes by the handlebars allowing multiple styles of bikes, including mountain, road and kids, to be easily carried all at the same time.

Features:

• Carries up to 6 mountain, cruiser, kids, BMX and many other styles or 4 drop handle road bikes.
• Quick and easy loading no matter what bike style.
• Secures bikes by the handlebar and rear wheel offering zero frame contact.
• Handlebar cradle design stabilizes bikes protecting them from each other.
• Padded cradles protect handlebars including carbon fibre bars.
• DH cradle (8002744) can be purchased separately to carry dual-crown suspension bikes.
• Rear wheel cups rotate to fit bike wheelbase lengths up to 50”.
• Included HitchLock secures the rack to the hitch.
• Anti-rattle threaded hitch pin virtually eliminates rack to hitch wobble.
• Vertical mast tilts backwards via foot-operated mechanism for easy access to rear of vehicle.
• Mast height can be lowered for easier storage.
• Integrated metal loop offers a secure point to attach your own bike cable lock or Yakima 8007233 9’ Cable Lock (sold separately).
• Solid steel construction and powder coated paint offers great durability.

Specifications:

• Hitch size: 2” hitch receivers only
• Weighs: 38.5 kg (84.7 lbs)
• Weight capacity: 17 kg (37.5 lbs) per bike
• Tire size: 20” - 29” up to 5” wide.
• Hitch to ground clearance: 25 cm (10”) or more recommended to reduce tire/road interference.
• Not compatible with aero handlebars (regular or clip on) or handlebar diameters larger than 35 mm in diameter.
• May require a minimum stem length of 40mm with a 10mm spacer, depending on frame and handlebar geometry (standard cradle only).
• Not compatible with campers, trailers or RVs.
• Not compatible with Yakima 8002483 BackSwing swing arm or 8002739 StraightShot hitch extension.
• Warranty: Limited lifetime
• Also available for 4 bikes (8002742).
• Model: 8002743
